Knowhow and Research output

Formulation of dry scrubber with 80% H2S absorption capacity

  • Bioconservacion
  • From Spain
  • Responsive
  • Knowhow and Research output

Summary of the technology

The formulation has been repeatedly tested in a laboratory, yielding an absorption capacity of > 80 g H2S/100 g product (using ASTM D6646). I am looking to find a company in the gas/air phase treatment industry that is keen on taking this product to the market. Given its superior absorption capacity, the operational costs are significantly lower than its competitors. Please contact me to further discuss.

Bioconservacion

H2S Dry Scrubber – Odor Control

Technical Description of the Product

  • The absorbent combines premium quality activated carbon together with a blend of catalytically active inorganic phases

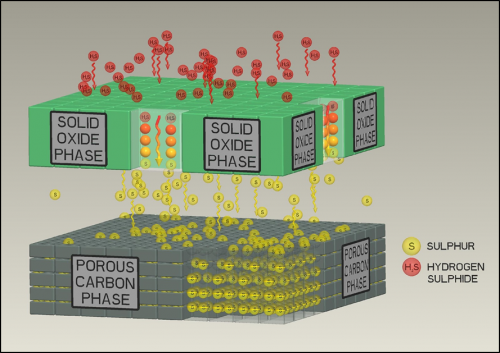

  • Mechanism: H2S is catalytically oxidized to sulfur (S) in the active sites on metal oxides. Next, sulfur migrates and builds up in the micropores of the activated carbon phase. Thus, the metal oxides are available again to oxidize new H2S molecules
  • H2S is not converted to sulfuric acid which may lead to equipment corrosion problems

Added Benefits

  • High H2S removal efficiency (> 99%) upon variable inlet conditions
  • Sulfur loading is not affected in the presence of high CO2 levels
  • Does not require frequent change outs or time consuming regenerating processes
  • Safe to handle and use
  • The high ignition temperature (420 ºC) minimizes the risk of bed fire
  • Low pressure drop, due to the nominal pellet diameter (4 mm)
  • Does not need to undergo long term conditioning prior to being put into operation

Applications

Any use that requires control of H2S gas, such as:

  • Wastewater treatment plants
  • Pumping stations
  • Wet wells
  • Lift stations
  • Sludge holding tanks
  • Refineries
  • Pulp and paper mills
  • Composting

Attached documents

Related Keywords

  • Chemical Technology and Engineering
  • Energy Technology
  • Bio-refineries for energy
  • Pulp Technology
  • Protecting Man and Environment
  • Environment
  • Outoor Air Pollution/Treatment
  • Indoor Air Pollution/Treatment
  • Waste Management
  • Biotreatment / Compost / Bioconversion
  • Water Management
  • Industrial Water Treatment
  • Municipal Water Treatment
  • Sludge Treatment / Disposal
  • Wastewater Recycling
  • Water Resources Management
  • Energy Market
  • Oil and Gas Exploration and Production
  • Oil and Gas Drilling, Exploration and Extraction Equipment
  • Industrial Products
  • Industrial chemicals
  • Air filters and air purification and monitoring equipment
  • Water treatment equipment and waste disposal systems
  • Water, sewerage, chemical and solid waste treatment plants
  • refineries
  • pumping stations
  • composting
  • wet wells
  • lift stations
  • sludge holding tanks
  • pulp and paper mills

About Bioconservacion

Bioconservacion

Bioconservacion

Small and Medium Enterprise from Spain

Founded in 1996, BIOCONSERVACION is Europe’s most renowned and reliable manufacturers of air filtration and gas purification solutions. Serving a network of Partners Distributors in different territories and global leading groups in the air filtration industry.
